Anyone Install a real class 2 or three hitch that is frame tied in?

[InfRoxor]

I want to buy an actual frame tied receiver/hitch for the rear of my Roxor. Has anyone purchased one and from where? I’m not referring to bolt on. Thank you in advance.



[OffRoad709]

View attachment 12750

Found this one online , currently fabbing one up similar to this . I'll post pics when I have it done.



[OffRoad709]

Found this one online , currently fabbing one up similar to this . I'll post pics when I have it done.

Finally warm enough / had some time to get back at it. Primed it and a light coat of paint then install.



[Hummingbird Ranch]

Looks very much like the OEM one. I installed the OEM one, and getting the holes located to drill into the box frame to match the holes in the receiver was a PITA, and I made cardboard templates. It would be much easier if you did not create holes in your receiver wings, but instead bolted the center piece up and then pilot drilled your holes where you like on your frame, and going thru the wings, just making sure you have enough edge distance, then disassemble, bring the holes in the wings up to full size and weld on your nuts, then step up the pilot holes in the frame.



[2dutz2]

6 inch channel bolted to frame , class 2/3 welded on , buy just the stub or make one. Rc



[OffRoad709]

Looks very much like the OEM one. I installed the OEM one, and getting the holes located to drill into the box frame to match the holes in the receiver was a PITA, and I made cardboard templates. It would be much easier if you did not create holes in your receiver wings, but instead bolted the center piece up and then pilot drilled your holes where you like on your frame, and going thru the wings, just making sure you have enough edge distance, then disassemble, bring the holes in the wings up to full size and weld on your nuts, then step up the pilot holes in the frame.

Basically I done what you said .



[Roxasuras]

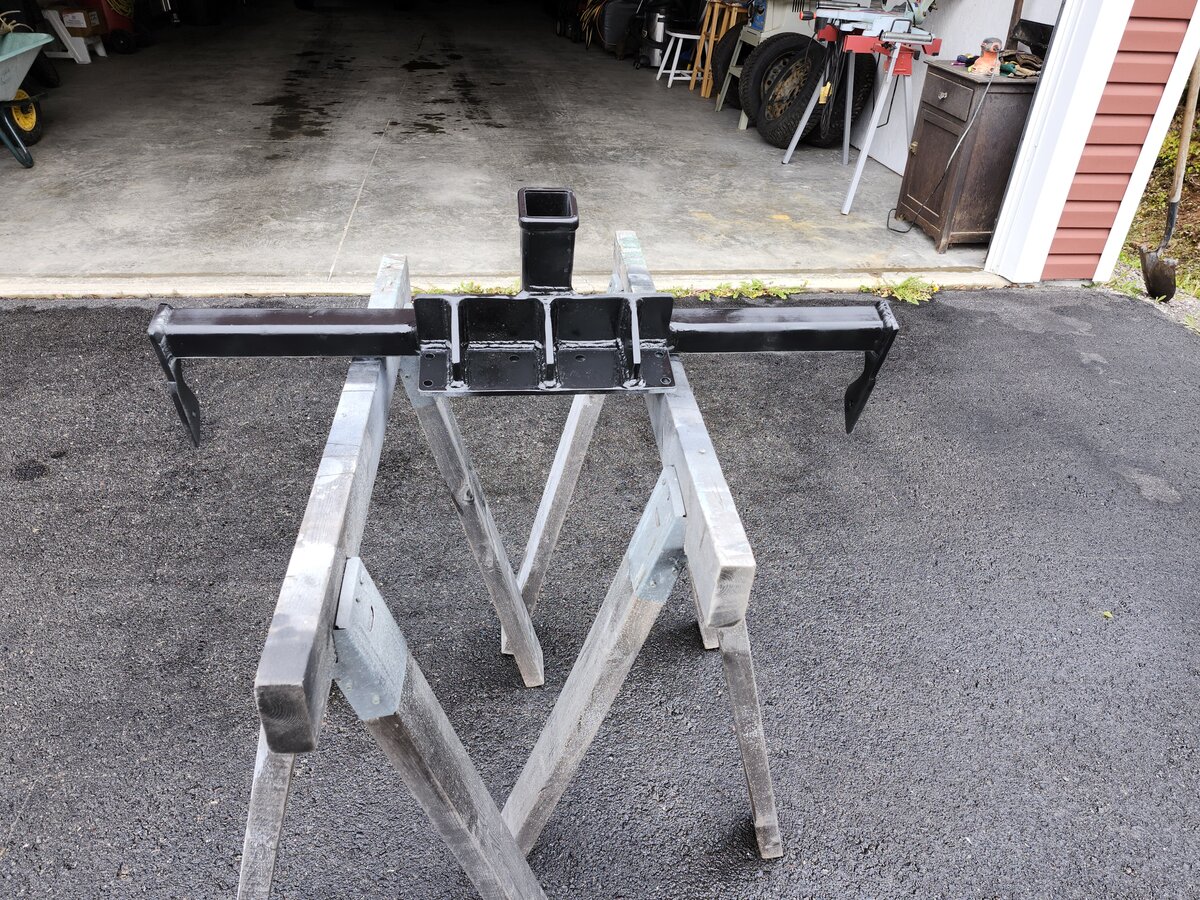

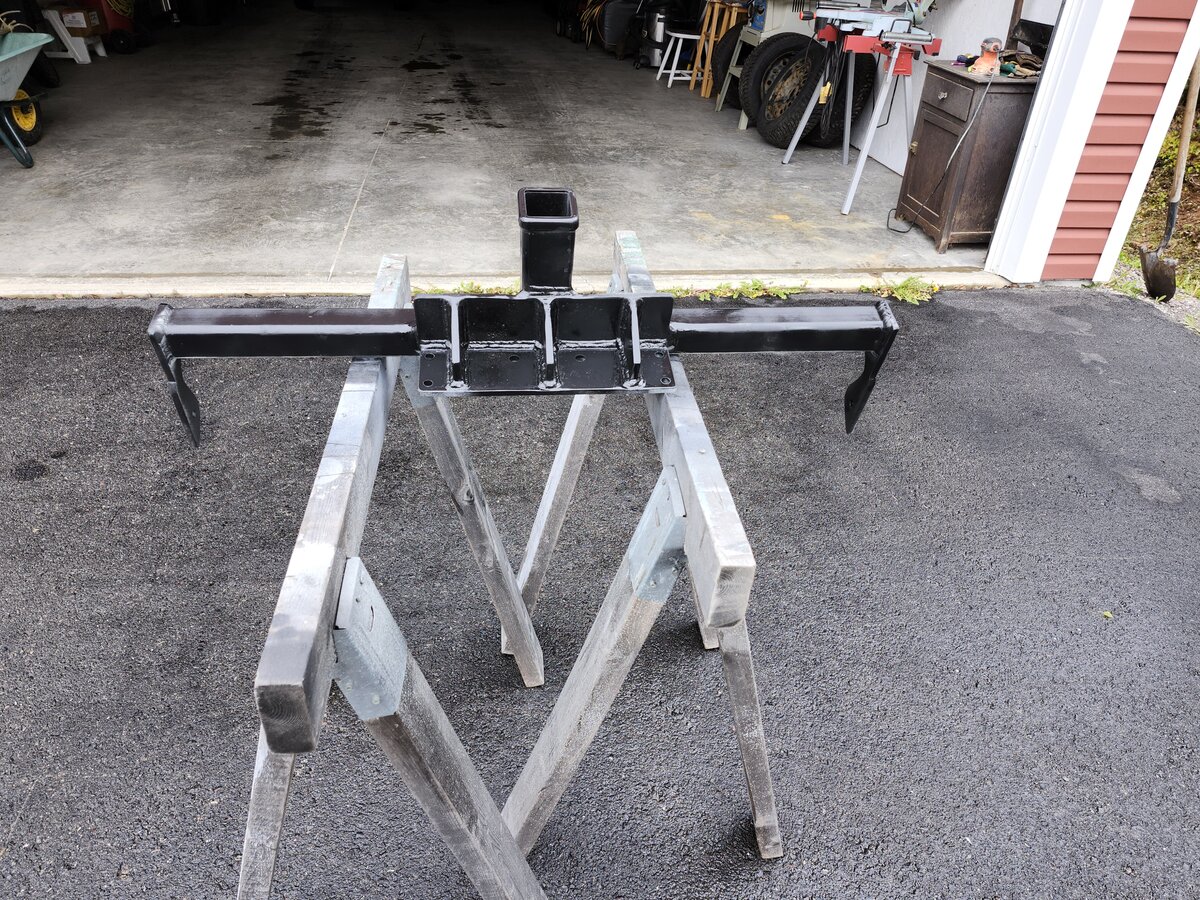

Finally warm enough / had some time to get back at it. Primed it and a light coat of paint then install.

View attachment 13640

Nice job!



[OffRoad709]

Nice job!

Thanks , should be installed Wednesday



[OffRoad709]

Thanks , should be installed Wednesday

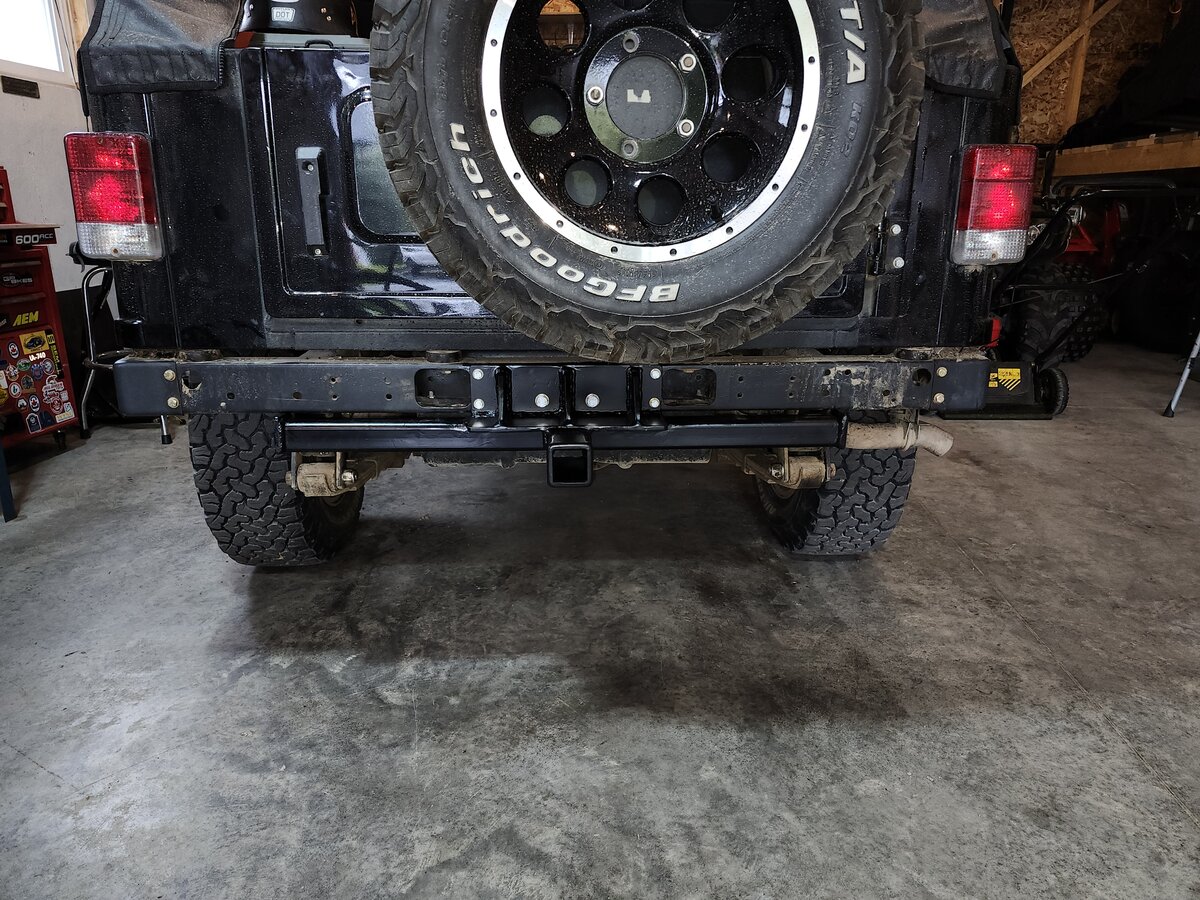

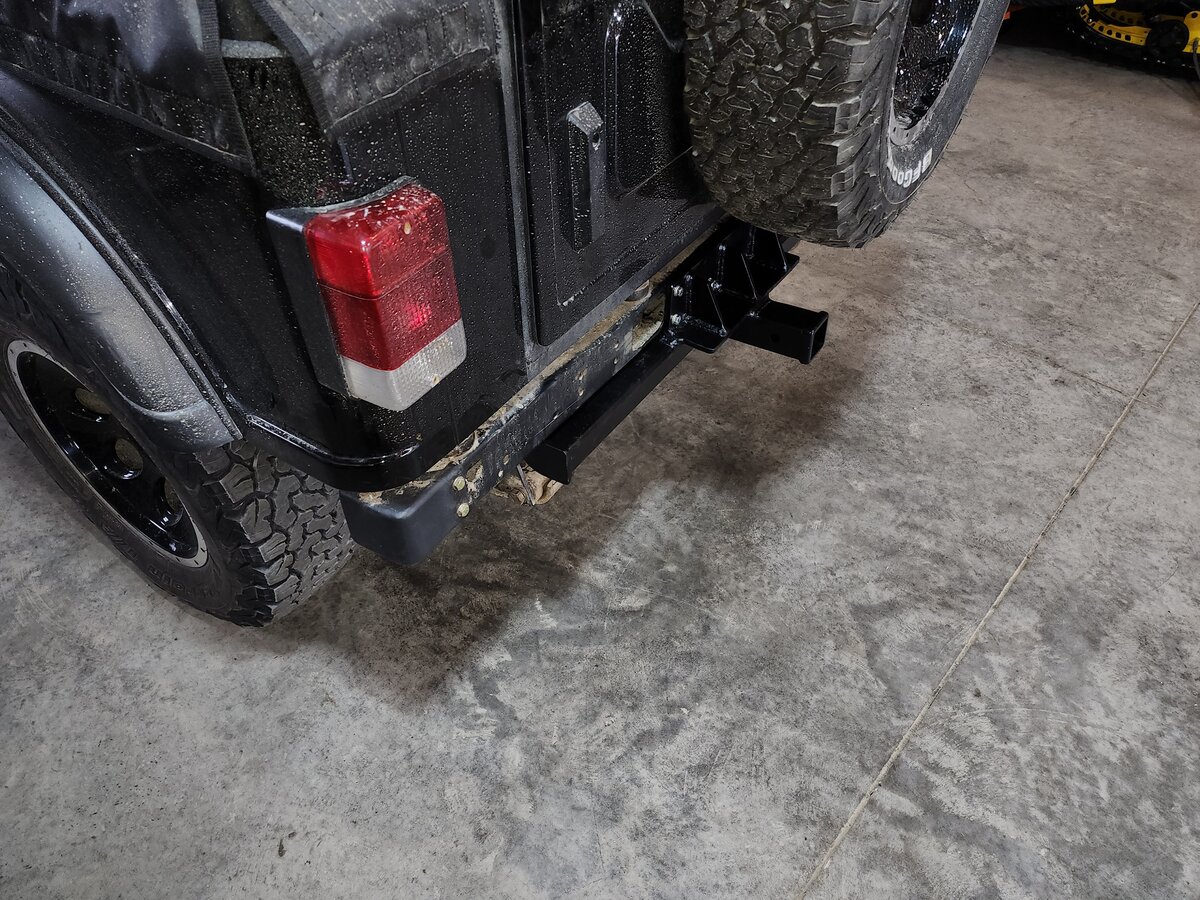

Dun !



[Roxasuras]

Looks good nice job



[OffRoad709]

Looks good nice job

Thanks ! Now I can pluck out / rescue my buddies lol



[Hummingbird Ranch]

Better than factory.
