ROXOR fan shroud--anyone install one?

[Tokarev]

The factory fan shroud has been out for awhile but I haven't noticed any mention of it. The fan shroud would seem like a mandatory item for those of us in the Southwest.

Anyone install one? Any feedback?

Sent from my SM-A505U using Tapatalk



[Togo]

Yes, 30 minute job. Incredibly easy. Living in the Deep South with 9-10 months of summer, I could see any negatives.



[Tokarev]

Yes, 30 minute job. Incredibly easy.

Cool. I will order one up from Sherwood.



Sent from my SM-A505U using Tapatalk



[Roxasuras]

Do you have a link for the shroud?



[Tokarev]

Looks like they're not in stock--of course...

Mahindra Roxor OEM 0304FAB00811N M/T Fan Shroud

Double the airflow of your ROXOR at low speeds. Our fan shroud directs more air through the radiator for increased cooling performance*. Bolt-on performance, no drilling! *Use only for Manual Transmission ROXORs without HVAC. Vehicles equipped with an Automatic Transmission and HVAC have the...

www.sherwoodtractorparts.com

Sent from my SM-A505U using Tapatalk



[Realtywill]

You might want to call Sherwood directly. I bought the shroud a couple weeks ago and it arrived damaged (it had a defect and was cracked at the seam). I looked on Sherwoods site and it said sold out. I called and they had another on it’s way to me within a couple days.


Sent from my iPhone using Tapatalk



[SMF]

Simple job, no drilling, four bolts to install, plus some other bolts to temporarily remove to help get brackets and shroud in place. It has got to improve cooling efficiency and it definitely does help keeping hay/grass and weed debris off the radiator. 30 minutes if you are organized and know what you're doing. By the time I get the right tools together and find the pieces I drop, takes me a bit longer, but no big deal and a nice improvement.



[pmgia]

I couldn’t find any directions for it on Roxor’s page or anywhere else. It comes with the shroud, two identical brackets four bolts/screws and 4 slip on nuts. The brackets only mount one way on each side, where it mounts to the shroud is offset Up/down on one side. I took the air intake off so I could fit it behind the radiator. The nuts slip onto the brackets so the bolt is forward. I did one side at a time with the shroud in place. Just remove four radiator bolts and reuse them to hold the brackets. Once everything was together I tighten it up and put the intake back on.



[Roxasuras]

Where did you purchase it from



[pmgia]

Diesel Freaks



[Roxasuras]

Diesel Freaks

Thank you



[MAVROX]

Thank you

Got mine from my dealer. With 10% discount it was the same price as other sources.



[oldgreybull]

I'm getting ready to do mine; can someone send a picture of one installed?



[MAVROX]

I'm getting ready to do mine; can someone send a picture of one installed?



[pmgia]

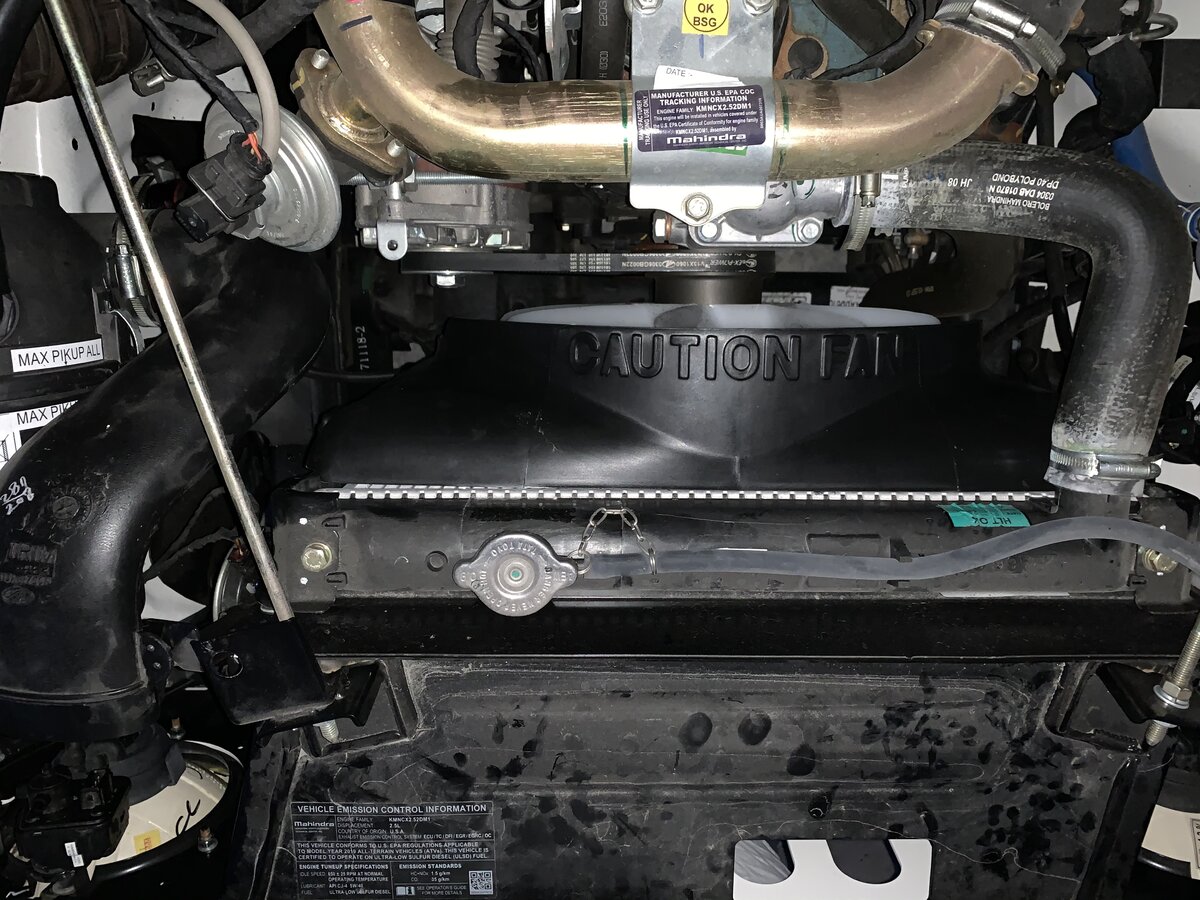

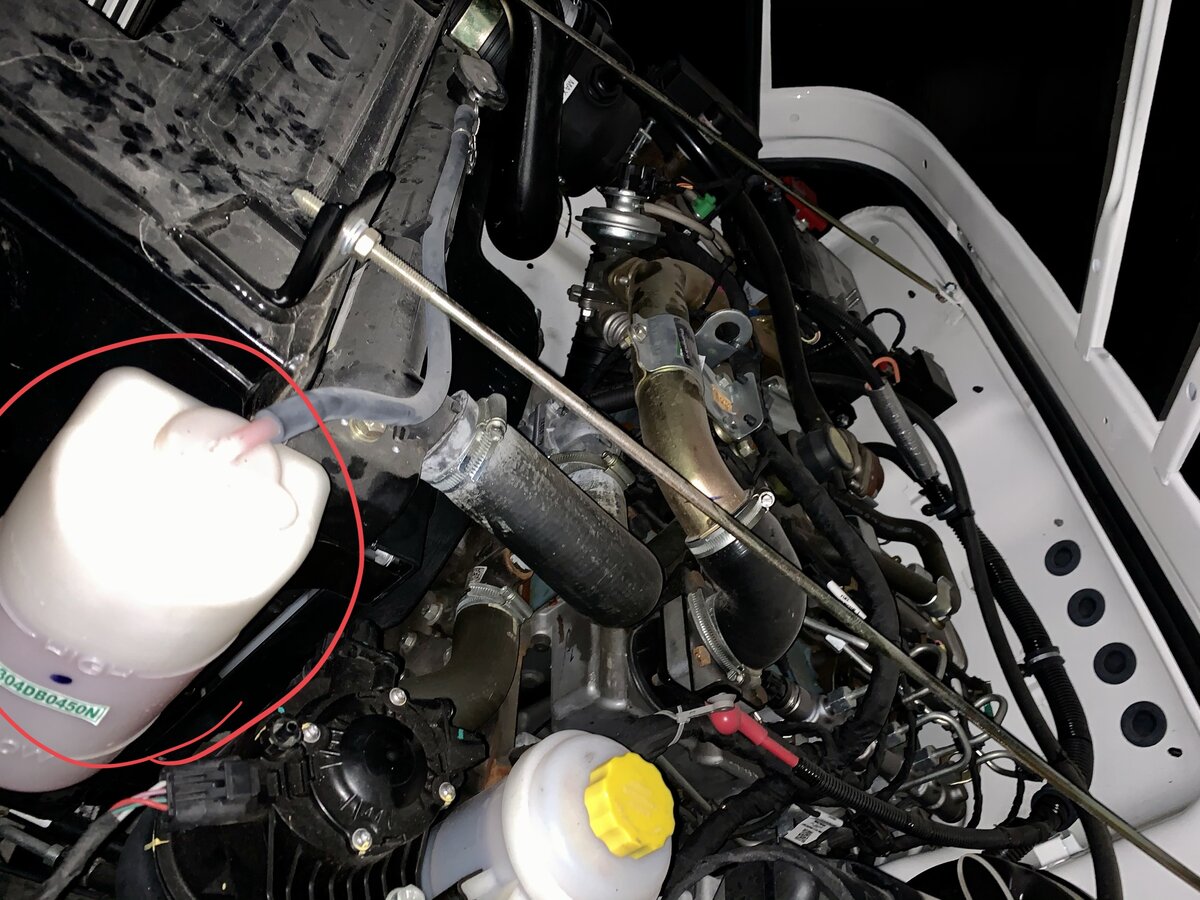

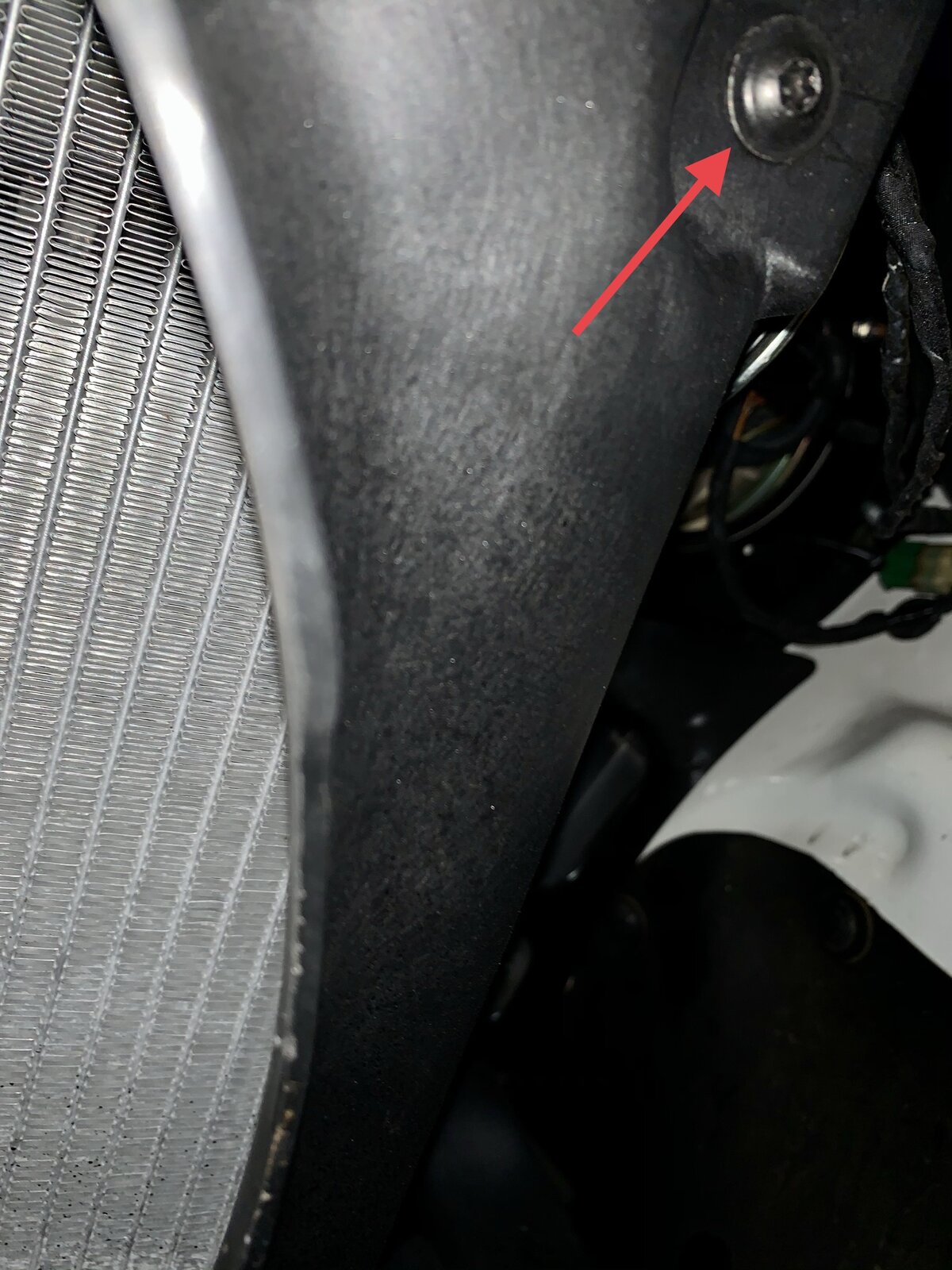

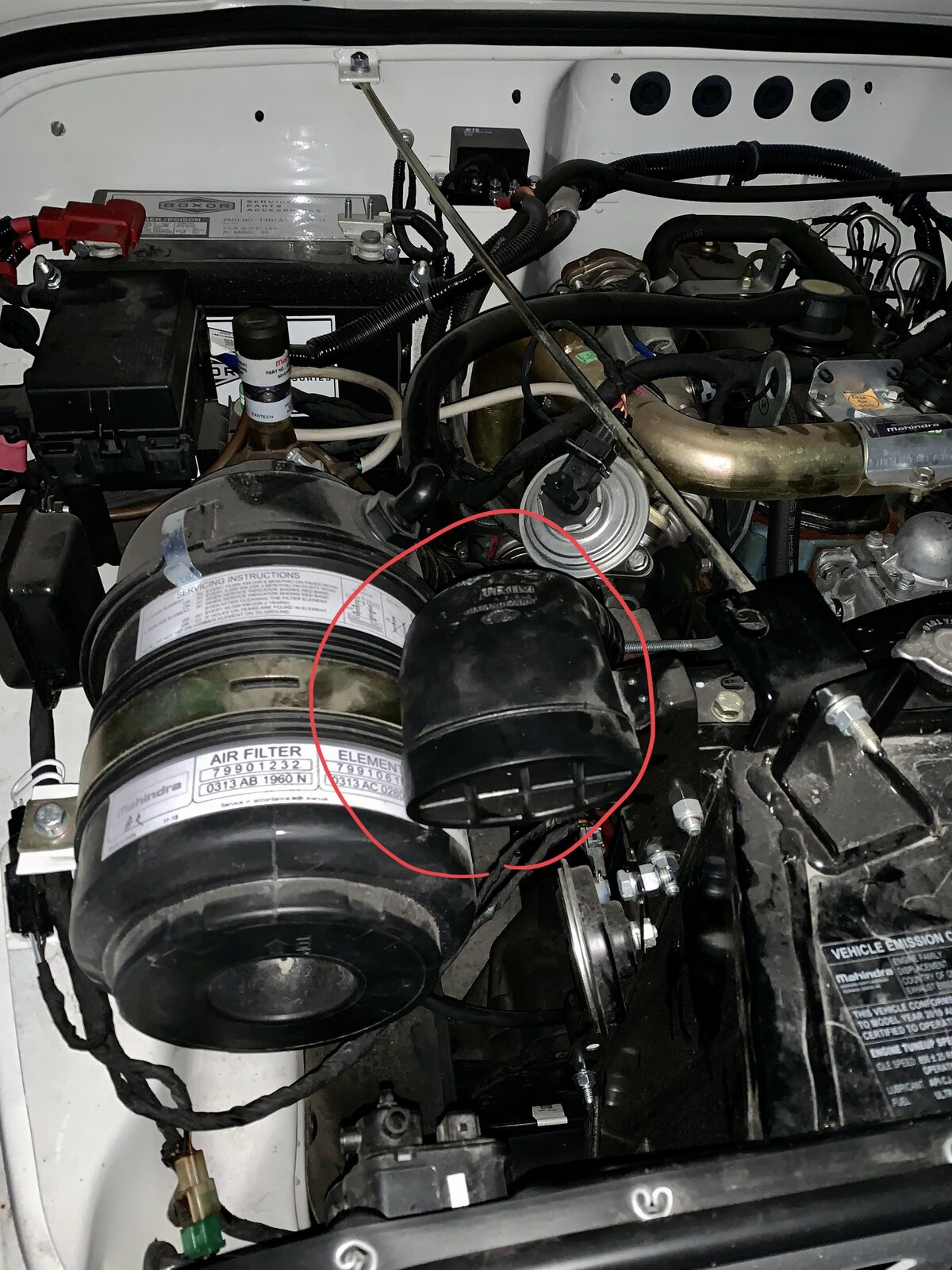

Hope it helps, remove the two items circled in red makes it easier, the air intake out of the way makes it best to slide in the shroud. I did not disconnect the coolant hose!



[oldgreybull]

Hope it helps, remove the two items circled in red makes it easier, the air intake out of the way makes it best to slide in the shroud. I did not disconnect the coolant hose!

View attachment 7662 View attachment 7663 View attachment 7664 View attachment 7665

View attachment 7662 View attachment 7663 View attachment 7664 View attachment 7665

Perfect! Thank you very much - like they say, a pic is worth 1000 words!



[oldgreybull]

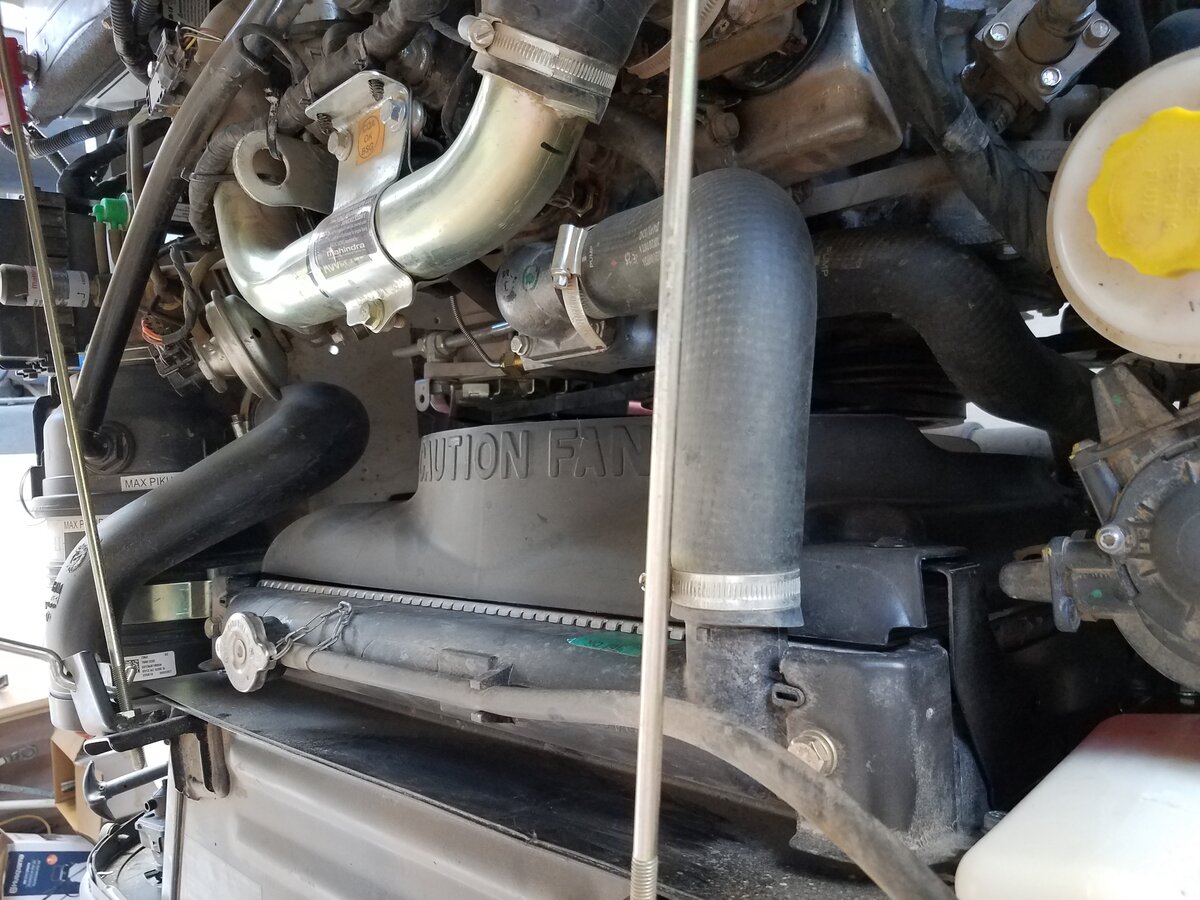

View attachment 7657

Thank you much - I can see where the bracket goes perfectly!



[Realtywill]

Any more details someone can provide on how you get the shroud in without messing up the radiator? Do you install it from the side or top?

Sent from my iPhone using Tapatalk



[MAVROX]

Just slowly work it around the fan, turn as you go.



[MAVROX]

Just slowly work it around the fan, turn as you go.

From the top, bend the blades a little if you have to.
