Anyone have pics of stock to 235 85R16 pics

[CJ2Rox]

Did u just level put your front? Mine has the 2" level kit. I run 285 75 16 on my pickup. I've heard there is rubbing with the 285. Since they are wider



[DAMCars]

Did u just level put your front? Mine has the 2" level kit. I run 285 75 16 on my pickup. I've heard there is rubbing with the 285. Since they are wider

I have wheel spacers, I think they are 1.5 or 2.0 inches. Bought from Wade at Diesel Freak. I also have 1.5 shackles front and 1 inch rear. Also had an add a leaf up front but I removed recently after getting new Bilsteins on all 4 corners.



[CJ2Rox]

I don't think I'll need spacers if I went 285 I would need them. My rear is stock



[CJ2Rox]

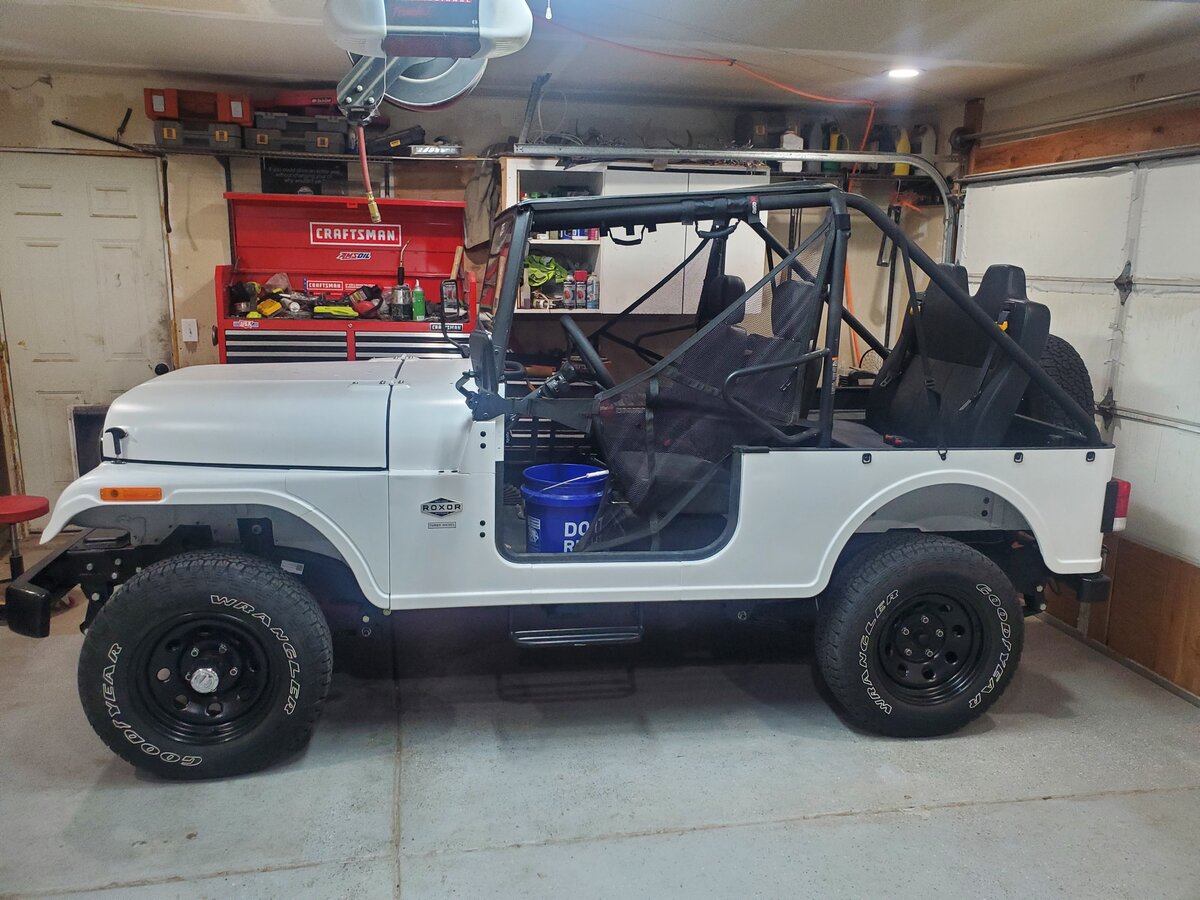

Stock Tires

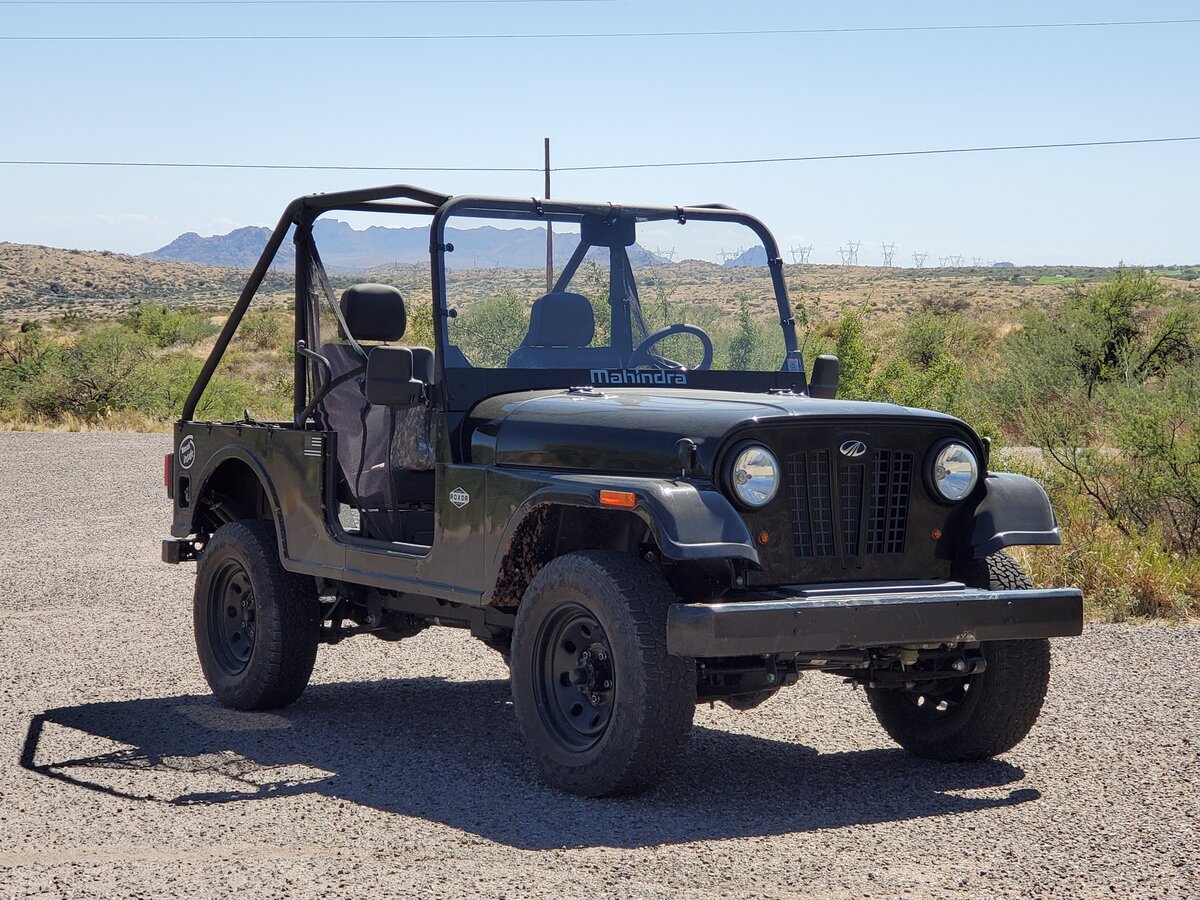

View attachment 9016

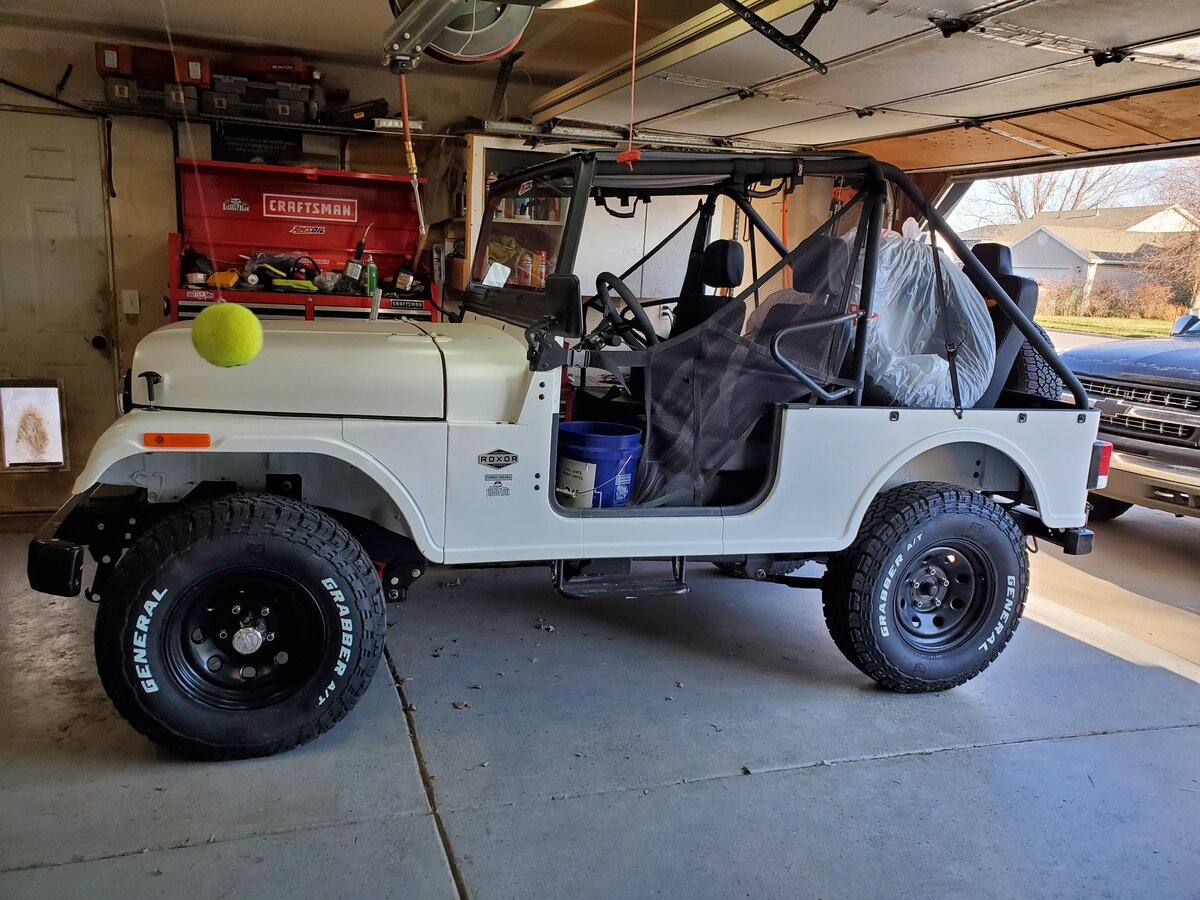

235/85/16's

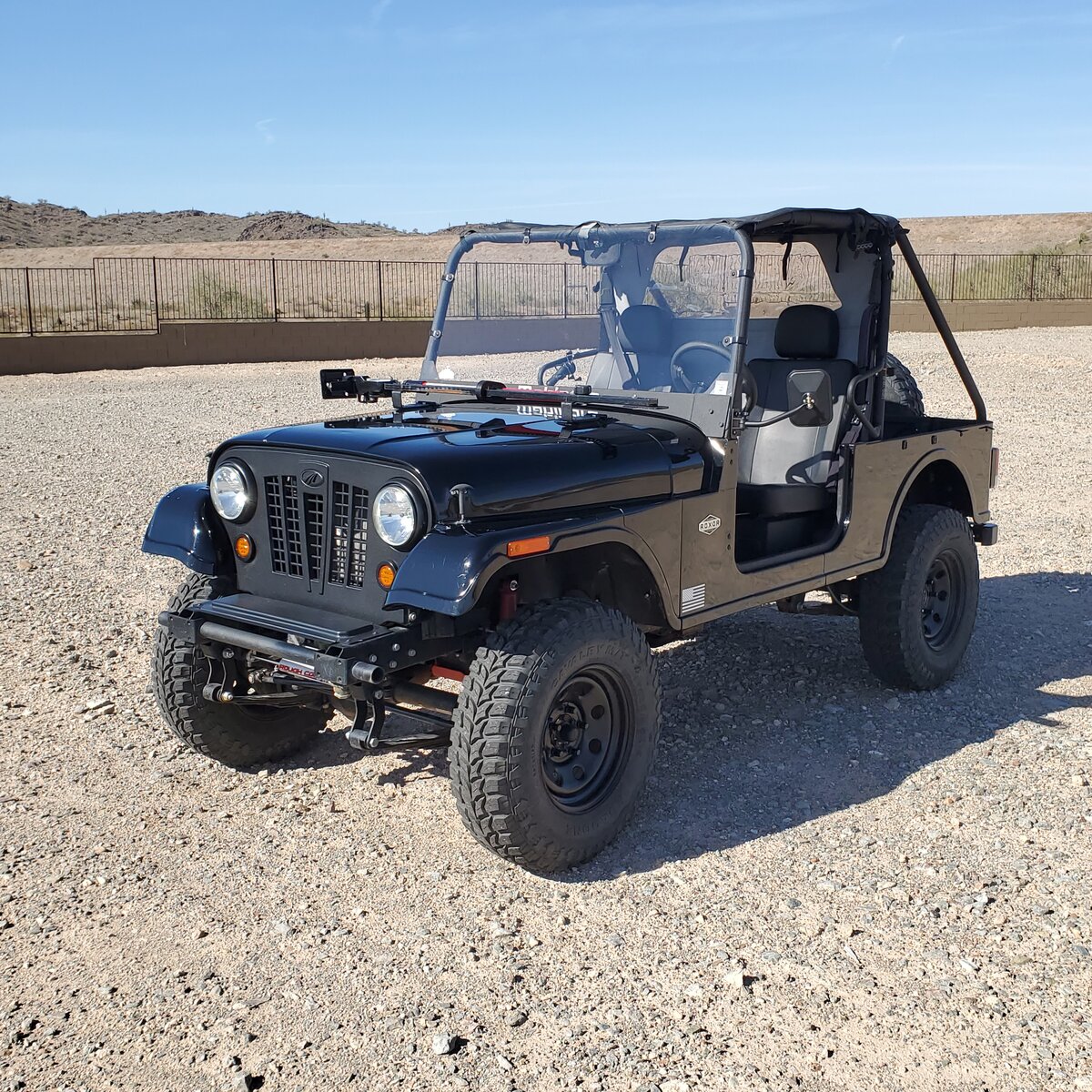

View attachment 9017

View attachment 9016 View attachment 9017

Did u remove front bumper cuz rubbed?



[DAMCars]

Did u remove front bumper cuz rubbed?

No. Removed because I think the factory bumper looks cartoonish. One of these days I will get a stubby with stinger bar and winch setup.



[CJ2Rox]

Looks proper



[CJ2Rox]

Well those almost worthless tiny tires sold. 200 for the 4.



[mickeybobs]

So will 235 85 16s work on a stock Roxor with no mods ?



[CJ2Rox]

All I did was leveled the front. Still think it would have fit but it's looks alot better now



[CJ2Rox]

So turning left I did have some rub on the leaf spring that was a simple fix with adjusting the bolt that adjusts turning radius. Extended it 1/4 inch



[mickeybobs]

So are you running 235 85 16s on 7" rims ?



[CJ2Rox]

So are you running 235 85 16s on 7" rims ?

I think so, using the stock wheels.



[mickeybobs]

I screwed my turn stops all the way in on with the stock tires ,no rubbing ...so ...think i'll need to turn them out much to stop rubbing from being all the way in? when you adjusted yours 1/4 inch ,was that from the factory setting ? I have crosswind 235 85 16 ,gona use my stock rims...



[CJ2Rox]

You are the one that showed me that trick, it only rubs turning left. The right side was perfect. I jacked up the front and while under turned the wheels. Made it real easy to get it right. I'm fine with stock wheels, I need to quit spending money on this. The wife thinks after I setup wipers I'm done but I need to pay off tires first. The 235 85 16 sure makes it look good and I think with the 5.38 gears it's perfect now with those tires. Get the RC level kit also it really helps with the stance



[Roxor76028]

I screwed my turn stops all the way in on with the stock tires ,no rubbing ...so ...think i'll need to turn them out much to stop rubbing from being all the way in? when you adjusted yours 1/4 inch ,was that from the factory setting ? I have crosswind 235 85 16 ,gona use my stock rims...

Those Crosswind MT are nice. Did you ever get them installed?



[mickeybobs]

I went with Multimile tires instead ,a little rubbing but stops are all the way in ...So if I use the 1.25 Cmax shackel lift on the front only will it steer ok?



[CJ2Rox]

You might need to use shims to adjust for just the shackle lift. Talk to Max.
