Temp Gauge Add-On

[WoodLot]

I agree, I think it does also, but the advantage out weighted the negatives IMO, Not sure about the others, but the Scan Gauge II I have unplugs, si I can easily unplug it and tuck the cord away.

I would not call any of my gauges anywhere near water proof, esp the way water pours into my Rxr during rain, so I just cover them to deflect it.

Having run both the scan gauge and the banks, if I was to do it again I'd go old school mechanical type SW gauges in OP, WT and DCV, vert dash mount on RH side of Factory meter, they look great there.

Another gauge I am running I didn't mention is exhaust temp, tapped in the rear EGR plate, pretty good indicator to have.



[Roxasuras]

Yes, I have added that and a boost gauge to monitor the turbo



[Eyellgeteven]

I would not call any of my gauges anywhere near water proof, esp the way water pours into my Rxr during rain, so I just cover them to deflect it.

Having run both the scan gauge and the banks, if I was to do it again I'd go old school mechanical type SW gauges in OP, WT and DCV, vert dash mount on RH side of Factory meter, they look great there.

Another gauge I am running I didn't mention is exhaust temp, tapped in the rear EGR plate, pretty good indicator to have.

I think I will put in some liquid filled SW gauges in at some point...can't go wrong with those.



[WoodLot]

Yes, I have added that and a boost gauge to monitor the turbo

The Banks will read everything coming off the ECU and whatever a customer wants to tap with their sensors but man it is way too smart and costly for my simple Roxor. Cheaper to do a stand alone pyro than buy their sensor. So now I have classic mix/match bunch off meters I have to cover in the rain. Oh well



[MAVROX]

has anybody put a shroud on the fan?

I just put the new shroud on my Roxor. It was pretty simple to do.



[Colderweather86]

You can get a fan shroud as an accessory from Mahindra for these. The shroud only comes standard if the Roxor has an automatic transmission or air conditioning.



[BOGGER]

There’s a OEM shroud kit you can buy from the dealer. It’s like $132



[Mtroxor]

I definitely want to get that shroud ordered. Not for cooling, but to protect the radiator. I can't be the only one that is having problems with large weed stems finding their way into the engine compartment between the fan and radiator then beating the crap out of the fins. It should be standard on all of them!



[Mtroxor]

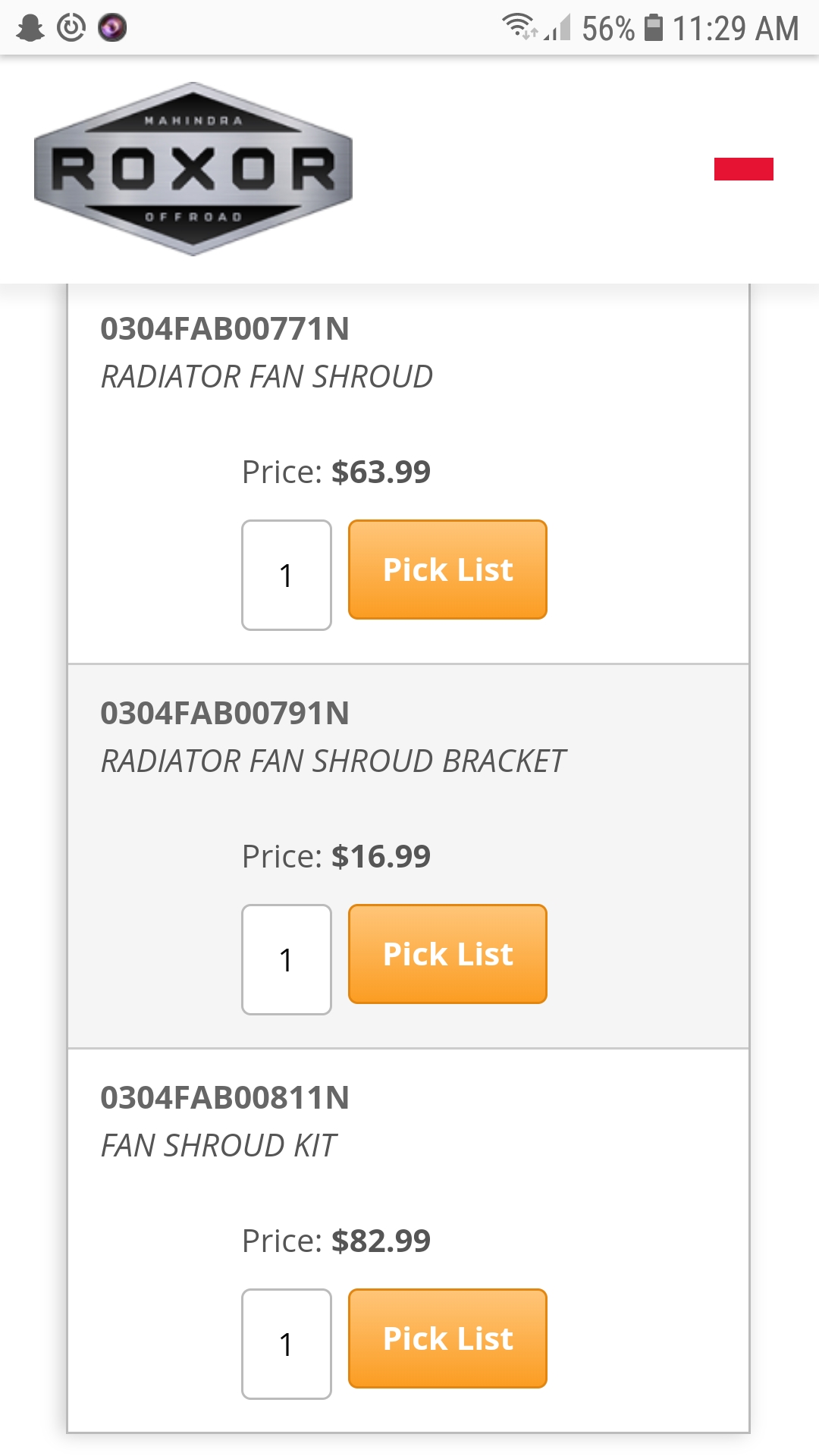

Can anyone confirm this is the correct part number?



[BOGGER]

Can anyone confirm this is the correct part number? View attachment 6503

View attachment 6503



[BOGGER]

Kit # ( not hashtag) looks correct. My dealer just charged me 132



[MAVROX]

Can anyone confirm this is the correct part number? View attachment 6503

View attachment 6503

That is the right number for the kit but the price is way cheaper than the $132.00 shown online. If you have a source that cheap i would grab it

Kit # ( not hashtag) looks correct. My dealer just charged me 132

That's what mine was before 10% discount.



[Mtroxor]

This is the link. It's through roxor, but you order it to your dealer I guess? I have not tried this yet, so maybe the dealer will still want to put on their mark up. But knowing cost could still be a chip to have them give me a deal. Say $110 instead of 130 maybe

Parts Catalog|ROXOR Offroad

app.roxoroffroad.com



[MAVROX]

This is the link. It's through roxor, but you order it to your dealer I guess? I have not tried this yet, so maybe the dealer will still want to put on their mark up. But knowing cost could still be a chip to have them give me a deal. Say $110 instead of 130 maybe

Parts Catalog|ROXOR Offroad

app.roxoroffroad.com

I just followed the link and it shows $132.00!?



[Togo]

I just put the new shroud on my Roxor. It was pretty simple to do.

I received my shroud to day. Took about an hour. I feel better about this “accessory “ than anything else I’ve done. It is difficult for me to understand why this isn’t standard equipment.
My diesel tractor doesn’t have a shroud and you have to watch it constantly for over heating.



[BOGGER]

I received my shroud to day. Took about an hour. I feel better about this “accessor“ than anything else I’ve done. It is difficult for me to understand why this isn’t standard equipment.
My diesel tractor doesn’t have a shroud and you have to watch it constantly for over heating.



[BOGGER]

They are both the same. Tab faces in on both sides



[oldgreybull]

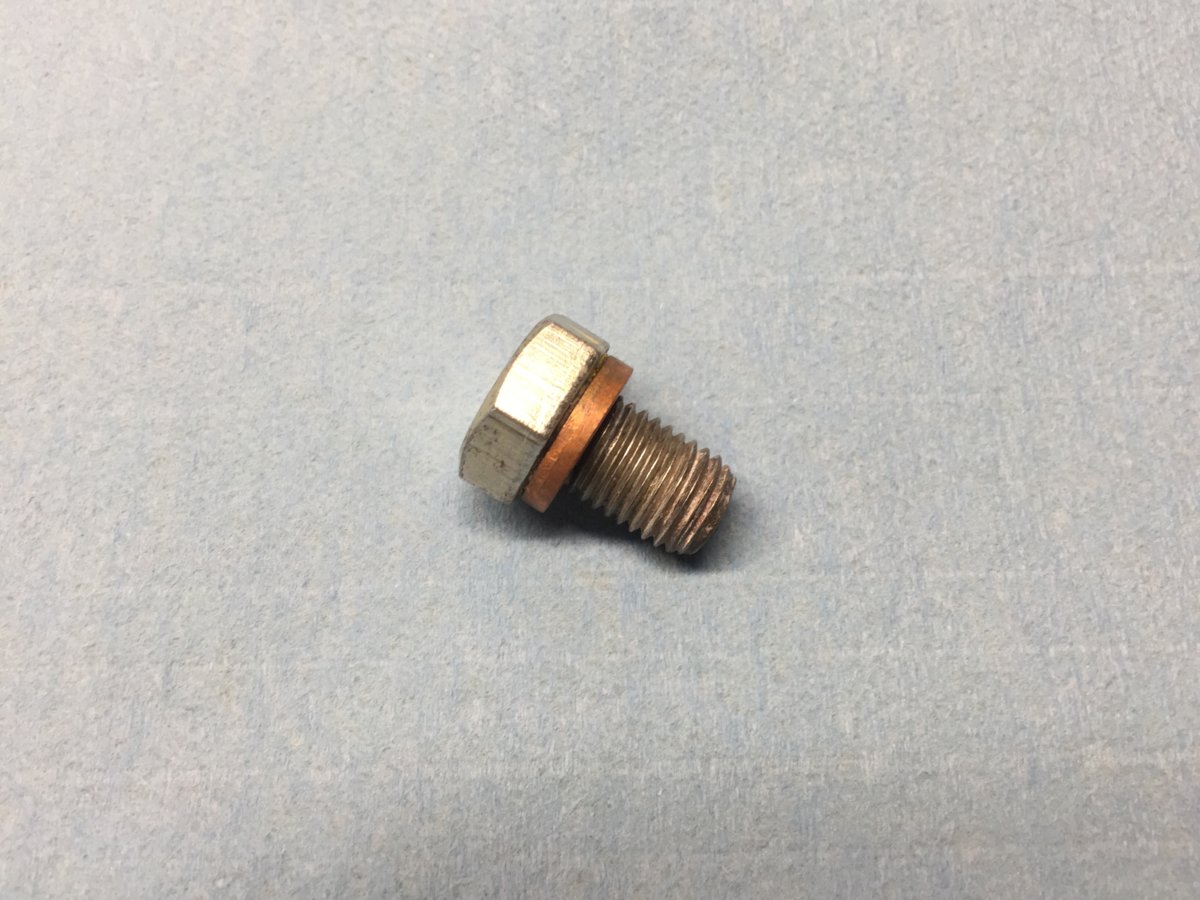

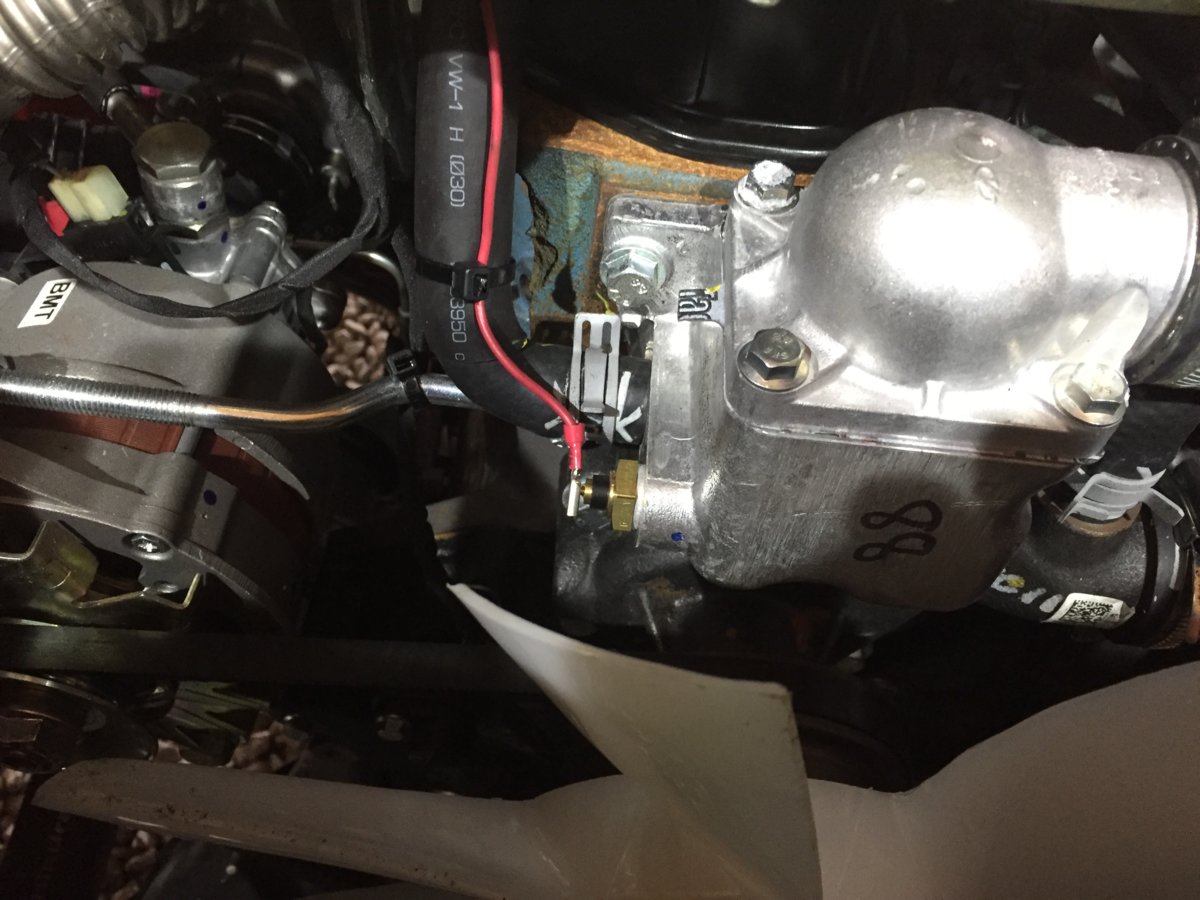

I recently added a temp gauge just to try and catch any heating issues with the non-shrouded fan design. I planned to use a mechanical and tap into the T-Stat housing but unfortunately found the port too small so I went electric. For those who might consider this little add-on the port is M12 x 1.5. I've attached pic of the plug and the installed SU. Incidentally I went with a "Dakota Digital" digital readout gauge and their SU.


View attachment 710View attachment 711

For the mechanically challenged- like me - what kind of adapter do I need to install the Dakota sending unit in the M12x1.5 port?



[Togo]

How would y’all recommend cutting a hole in the dash for these gauges?
I'm thinking about using a carbide tipped hole saw.



[Roxasuras]

I used a punch to make a pilot hole and the a circle carbide bit. Be careful the top part is pretty thick.
